Since the Internet was invented, web developers have been looking for the most efficient way to display content on web browsers. Often, they've settled for workarounds in lieu of more effective solutions.

Float-based layouts and table-based layouts are two such examples. Neither of these approaches are perfect, however, since floats and tables were never equipped to be used as layout tools.

In fact, use of the HTML5 table element for layout purposes has been deprecated — which means using this element for stylistic purposes is considered bad for your website structure and can also be bad for SEO.

So, what's a marketing-minded web development team to do?

The solution: a CSS grid layout.

Free Intro Guide to HTML & CSS [Download Now]

What Is a CSS Grid?

The CSS grid layout (also referred to as "the grid") was proposed to the CSS Working Group by Microsoft and the Grid Layout Working Draft was first published in April 2011.

Over time, this specification has been improved, thanks to feedback from developers and browser vendors who work together to make the grid a truly effective layout solution.

The grid acts as an addition to CSS that allows you to control the size and placement of grid items. You can use media queries to automatically adapt your grids to diverse contexts.

Benefits of a CSS Grid

Thanks to its flexibility, a CSS grid allows web designers to achieve almost any type of layout that they need. It's great for dividing up the major regions of a page into smaller sections or defining the relationship between elements in terms of size and position.

While it aligns page elements by columns and rows just like tables, the grid isn't limited by a particular content structure. This makes it possible to create a wider variety of website layouts than would be practical with tables alone.

Additionally, without a content structure, the grid layout can easily adapt to changes in device, space, and orientation without requiring a semantic change in the content. You can rearrange grid elements — no matter their source order — which makes it possible to fit the layout to the context without changing the underlying markup.

A powerful auto-placement feature lets you easily fill up available space, eliminating the need for complex calculations. The grid even allows you to overlap items when you need to, which is definitely not possible with tables.

Now that we're familiar with the CSS grid, let's explore how to use it in the section below.

How to Use CSS Grid

W3Schools shows if you want to set up a grid layout, you must create a parent element (the grid container) and one or more child elements (the grid items).

Setting the display property of an HTML element makes it a grid container.

CSS-Grid-1

Image Source

Grid items are the direct children of the grid container. They are arranged vertically into columns and horizontally into rows.

The space between a row and a column is called a gap. You can adjust the gap using these properties:

  • grid-column-gap, which defines the gap between columns;
  • grid-row-gap, which defines the gap between rows; or
  • grid-gap, which is a shorthand property for grid-column-gap and grid-row-gap.

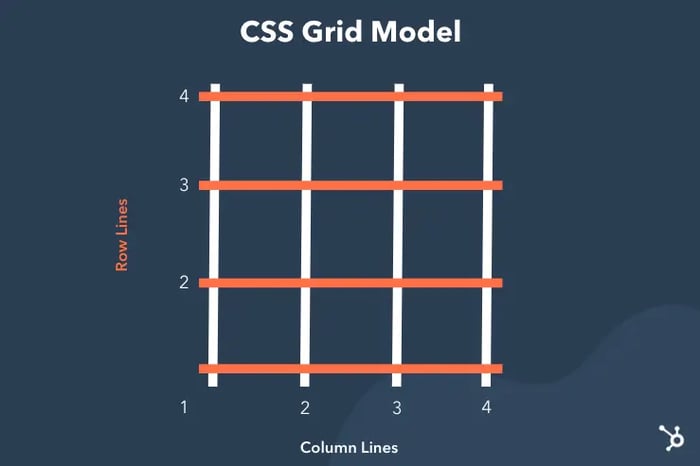

In between columns and rows, there are lines referred to as column lines and row lines, respectively. We can see an example of this below.

CSS-Grid-2

Image Source

When positioning a grid item inside a container, you reference the line numbers.

How to Center a Grid in CSS

The grid is two-dimensional, which means that the layout is completed with two axes: The y-axis (block axis) and the x-axis (inline axis).

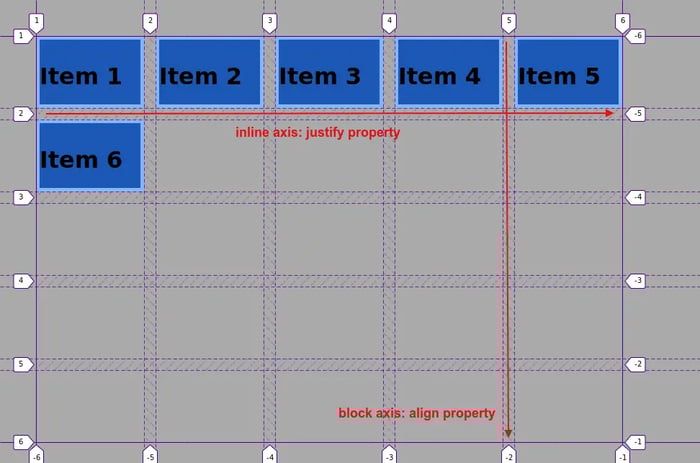

In CSS, the align property is used to define the block axis while the justify property defines the inline axis.

CSS-Grid-3

Image Source

To start centering your grid items, use the align-items property. Some of the values that you can assign to this property are start, end, and stretch.

When the value of the align-items property is set to start, this places the items to the vertical start of their corresponding grid area while setting it to end places them at the end. When the value is stretch, the items are spread out across the grid area.

The justify-items property works similarly to the align-items property and accepts the same values on the inline axis.

To target just one item so you can center it, use the align-self and justify-self properties, respectively, at the item level.

The last step is making your grid responsive to a mobile layout. After all, if you create an amazing display you want it to be shareable through a mobile interface.

How to Make a CSS Grid Responsive

One of the best features of the grid is that it's fairly device responsive from the get-go. W3Schools shares these additional directions to guarantee responsiveness when using the grid.

To build a responsive Grid, first set the box-sizing property of all HTML elements to border-box. This includes the padding and border to the width and height of the elements.

Add this code to your CSS:

* {

box-sizing: border-box;

}

Next, you'll create a simple responsive web page for practice:

CSS-Grid-Code-1

Image Source

For a web page with only two columns, the example above will suffice. However, if you want to have more control over the web page you can use 12 columns on the grid.

You must first calculate what percentage each column occupies. For example, 100% / 12 columns = 8.33% per column.

Next, make a class for each column, class="col-", as follows:

CSS-Grid-Code-2

Image Source

We mentioned float-based layouts at the beginning of this article. Although a CSS grid layout isn't entirely based on this system, it makes use of some similar properties.

In this example, you'll set your columns to float to the left with a padding of 15px, which gives each element room to breathe:

CSS-Grid-Code-3

Each row is wrapped in a <div> and the number of columns inside a row always adds up to 12:

CSS-Grid-Code-4

Next, you'll want to make sure to clear the float, ensuring all columns inside the row are within the flow of the page:

CSS-Grid-Code-5

Image Source

From there, you can add additional styling to customize the grid according to your website's branding.

If this sounds like too much work, then you might want to build with a front-end development framework like Bootstrap CSS. You can use the Bootstrap's built-in grid system so you're not creating grids from scratch. That way, you can focus on the content in the grid rather than the grid itself.

Learn more about the difference between CSS Grid, Bootstrap, and Flexbox.

CSS Grid Example Layouts

Now that we've covered the basics of the CSS grid, let's look at basic CSS grid layout examples. Some of the examples below are by web designer Rachel Andrew and cited accordingly.

Line-based Placement Layout

When creating CSS grids, it's common to position items on the grid based on column and row lines. The example below is a simple grid with three columns and two rows. It contains six items, none of which span multiple grid tracks.

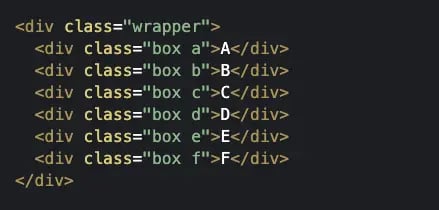

Here's the HTML that defines the grid. Notice that each grid item has its own class name. That  will enable you to use class selectors to apply unique styling to each grid item in your CSS.

HTML defining grid with div parent and six children elements

Image Source

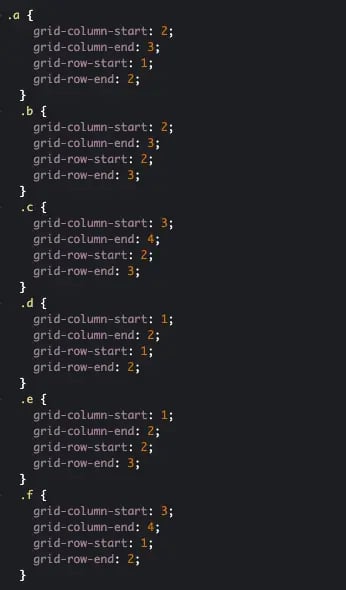

Below is the CSS that defines the placement of the six grid items. Notice that there are six rule sets that define the grid-column-start, grid-column-end, grid-row-start, and grid-row-end properties with line numbers for each grid item.

CSS defining the start and end column and row lines of six grid items

Image Source

Here's the result on the front end:

Line-based placement CSS Grid layout with grid items spanning only one grid track

Image Source

Using Shorthand Grid-Row and Grid-Column Properties

We can create the same grid layout from above using shorthand grid-column and grid-row properties.

These shorthand properties can save you time and make your code look cleaner. Rather than writing out the grid-column-start and grid-column-end properties on two separate lines, you can combine them into one line under the grid-column shorthand. To define this shorthand property, make the first number the column line where the grid item starts and the second number represents the column line where the grid item ends. Separate the values with a slash.

You can do the same for the grid-row shorthand property.

Here's the same CSS from the example above rewritten using the shorthand grid-column and grid-row properties:

CSS of grid layout example using shorthand grid-column and grid-row properties

Image Source

The HTML would stay the same, and the grid would look the same on the front end.

Using Shorthand Grid-Area Property

We can also create the same grid layout by using the shorthand grid-area property.

This shorthand property can save you even more time by requiring less code. It's just a bit more difficult to remember the order of property values.

For each of the six rule sets, all you need to do is define the grid-area property with four values. The order of the values is: row line where grid item starts / column line where grid item starts / row line where grid item ends / column line where grid item ends.

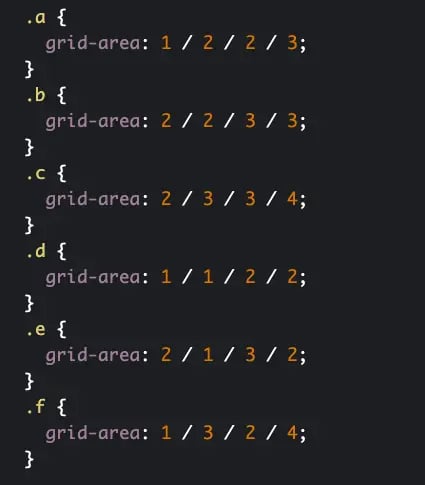

Here's the same CSS from the example above rewritten using the shorthand grid-area property:

CSS of grid layout example using shorthand grid area property-1

Image Source

The HTML would stay the same, and the grid would look the same on the front end.

Using Column and Row Line Names

In addition to using line numbers, you also have the option to name your grid lines and use those instead.

This will require you to change the CSS that defines the grid as a whole and the CSS that defines the placement of the six grid items. First, under the class selector .wrapper, you'll find the grid-template-columns and grid-template-rows property. In the previous examples, only the grid-template-columns property was defined with 100px three times. Meaning, each column was equally sized as 100px wide. Here's how that looked in CSS:

CSS defining grid with grid-gap and grid-template-columns properties

Image Source

For this example, we'll have to define both the grid-template-columns and grid-template-rows property with lines names and values. Each column will be named "col1-start," "col2-start," and "col3-start," respectively, and set to 100px. Each row will be named "row1-start" and "row2-start," respectively, and set to "auto." Here's the CSS:


.wrapper {

    display: grid;

    grid-gap: 10px;

    grid-template-columns: [col1-start] 100px  [col2-start] 100px  [col3-start] 100px;

    grid-template-rows: [row1-start] auto [row2-start] auto [row2-end];

    background-color: #fff;

    color: #444;

}

Now here's the same section of CSS from the example above, rewritten using shorthand properties and grid line names.


    .a {

        grid-column: col2-start;

        grid-row: row1-start;

    }

    .b {

        grid-column: col2-start;

        grid-row: row2-start;

    }

    .c {

        grid-column: col3-start;

        grid-row: row2-start ;

    }

    .d {

        grid-column: col1-start ;

        grid-row: row1-start ;

    }

    .e {

        grid-column: col1-start ;

        grid-row: row2-start ;

    }

    .f {

        grid-column: col3-start ;

        grid-row: row1-start ;

    }

The HTML would stay the same, and the grid would look the same on the front end.

Line-based Placement Layout Spanning More than One Grid Track

Now that we understand the different ways we can write the code for line-based placement layouts, let's consider a more complex example: positioning items that cover more than one grid track. The grid below will contain only four grid items. One item will span more than column, and another will span more than one row.

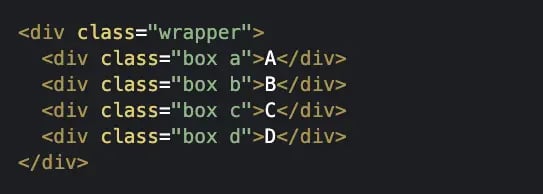

Here's the HTML that defines the grid.

HTML of grid layout example defining four grid items

Image Source

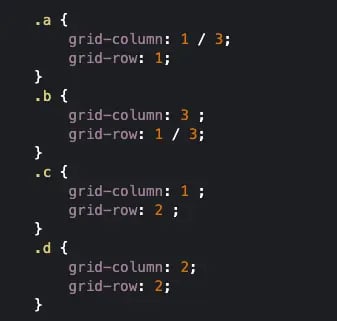

Below is the CSS that defines the placement of the four grid items. Notice that the shorthand grid-column and grid-row properties are being used and that most instances only have one value defined. That's because you only need to define the start and end values for the grid items that you want to span multiple tracks.

For example, to have grid item A span two columns, you can define the grid-column shorthand property by making the first value a "1" and the second value a "3." To have grid item B span two rows, you can define the grid-row shorthand property by making the first value a "1" and the second value a "3."

CSS of grid layout example spanning multiple grid tracks and using shorthand grid area property

Image Source

Here's the result on the front end:

Line-based placement CSS Grid layout with grid items spanning more than one grid track

Image Source

Using the Span Keyword

We can create the same grid layout from above using the span keyword.

Rather than writing out the end value for the grid-column and grid-row shorthand properties of the two items spanning more than one grid track, you'd write "span" and include the number of columns or grids you want the item to span.

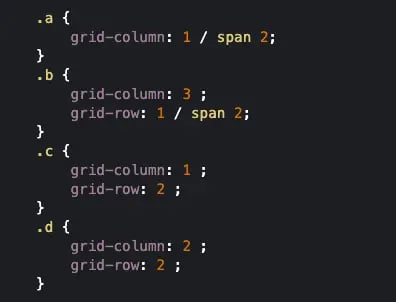

Here's the same CSS from the example above rewritten using the span keyword. Items A and B span two columns and two rows respectively, so the end value is "span 2." Note that many properties are only defined by one value. In that case, the default of spanning one column or row is assumed.

CSS-Grid- Example-5

Image Source

The HTML would stay the same, and the grid would look the same on the front end.

Holy Grail Layout

You may have noticed many web pages have a similar structure. There'a header at the top, footer at the bottom, and content area in between. This content area is situated between two columns. Let's say you were to look at the source code of these pages. Ideally, you'd see the content area come first, followed by the two columns. Before CSS grid, this was difficult to achieve. With the CSS grid, it's easy.

Below we'll take a look at the code and layout that's been coined the "Holy Grail Layout."

Here's the HTML defining the header, navigation sidebar, main content (the <article> element), right sidebar (the <aside> element), and the footer. Note that you can replace the <nav> item with another <aside> element if you prefer.


<div class="grid">
<header>
Header
</header>

<nav>
Navigation
</nav>

<article>
Article
</article>

<aside>
Right Sidebar
</aside>

<footer>
Footer
</footer>
</div>

Here's the CSS defining the grid and grid items. Note that I used the fr unit to define each column. The fr unit represents a fraction of the available space in the grid container rather than a set amount, and ensures that grid tracks grow and shrink according to the available space. Note that I also used three different value types to define the track size of the rows. I also made every grid item (represented by the asterik) into a flex item with center alignment and justified content.


.grid {
display: grid;
grid-template-columns: repeat (3, 1fr);
grid-template-rows: 30% 200px auto;
grid-gap: 1em;
}

.grid > * {
display: flex;
align-items: center;
justify-content: center;
}

Now it's time to style the content. First I'll change the background color and padding of the header, nav, article, aside, and footer element. Then I'll set the grid-column-start and -end properties to 1 and 4 so they span the length of the grid. Finally, I'll set a minimum width for the article element so that the main content takes up most of the page.


header,
nav,
article,
aside,
footer {
background: lightgray;
padding: 1em;
}

header, footer {
grid-column: 1 / 4;
}

article {
min-width: 15em;
}

Here's the result on the front end:

Holy Grail CSS grid layout with full-width header and footer, main content area, and two sidebars

Image Source

Classic Blog Layout

You can create another similar and extremely popular layout with CSS grid known as the "Classic Blog Layout." This layout also has a full-width header and footer and a content area — but it has one sidebar instead of two.

Here's the HTML:


<div class="grid">
<header>
Header
</header>
<main>
Blog Post
</main>
<aside>
Sidebar
</aside>
<footer>
Footer
</footer>
</div>

Here's the CSS:


.grid {
display: grid;
grid-template-columns: 75% 25%;
grid-template-rows: 50px 200px 100px;
grid-gap: 1em;
}

header,
footer {
grid-column-start: 1;
grid-column-end: 3;
}

.grid > * {
background: lightgray;
display: flex;
align-items: center;
justify-content: center;
}

Here's the result on the front end:

Classic Blog CSS Grid Layout example with full-width header and footer, main content area, and sidebar

Image Source

As shown by the examples above, the CSS grid was designed as a flexible solution to be applied to different use cases. While the basic concept of this layout tool remains the same regardless of your situation, the devil is in the details — you must understand how the various elements work together to produce a useful end result.

Perfecting the CSS Grid

By spending the time necessary to understand the CSS grid, you're creating a strong foundation for producing responsive websites that make Google happy, unlike the deprecated table tag previously used for similar website layouts.
